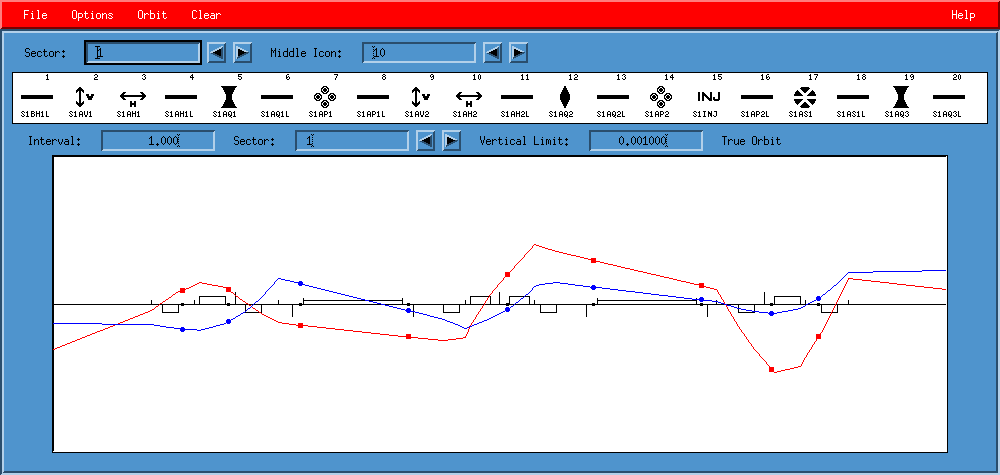

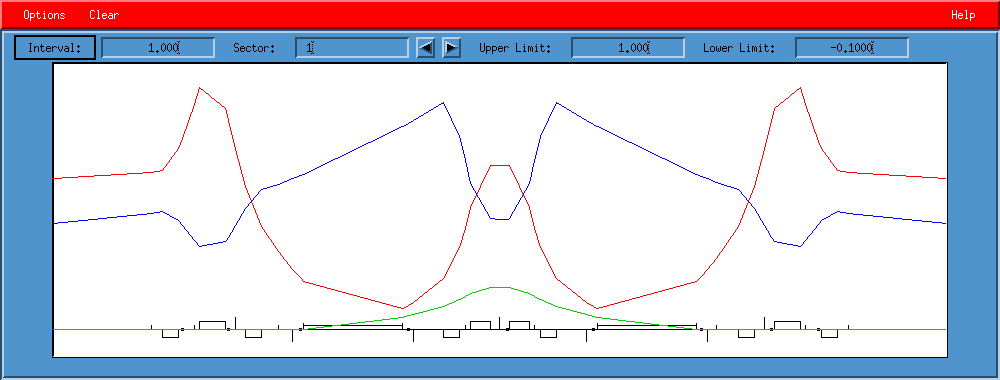

You can see the Xorbit main window here and the Xorbit plot window here.
Contact: evans@aps.anl.gov
Xorbit is an interactive accelerator physics code. The program
requires an input file with a name of the form <name>.in. The
command line to run the program is:
- orbit [<name>] [&]
- ie. xorbit aps &
If <name> is not specified, Xorbit will try to use
default.in.
Xorbit is a Motif application, and its interface controls are
standard Motif controls. The operation of these controls is the same
as for any other standard Motif application.
The main window contains a menu
bar, an icon area, and a graph area. Most of the options can be
activated via the pulldown menus on the menu bar. Menu items ending
in ... will bring up another window. Menu items with an arrow have
additional pullright menus attached. Text that appears in text boxes
can be modified. The modifications are not implemented until
<CR> is pressed.
Icons representing the accelerator elements are displayed in the icon area. The controls above the
icon display area control the icon display. Clicking on an icon will
cause a popup window to appear with information about that element.
Also, clicking on an element in the graph area will cause the icon bar
to move to the icon for that element.
The orbit is displayed in the graph
area. The controls above the orbit display area control the orbit
display. Clicking Button 1 on a magnet symbol will cause the icon
display to move to that icon. Clicking Button 2 on a symbol will
cause that symbol to move to the center of the display. Holding down
Button 3 will cause the display to scroll. The scrolling speed
depends on the distance of the mouse cursor from the midpoint.
The plot window, implemented
from the Options button, behaves similarly to the main window. There
are several popup windows which are displayed from the menus or by the
program as needed.
Xorbit has a Channel
Access capability that allows it to be controlled through other
programs, such as Mathematica. This capability greatly extends
the number of things that may be done with Xorbit. The
objective has been to keep the accelerator simulation in Xorbit
simple, leaving complex algorithms to these other programs.
In order to work properly the program needs its applications default
file, EvansApp, in the user's home directory or the applications
default directory, usually /usr/lib/X11/app-defaults.
This is a beta version. Comments and suggestions may be sent to:
evans@aps.anl.gov
Main Window
Most of the operation of Xorbit is concentrated in the main
window. Most of the menus and controls are here, and this is where
the orbits are displayed.
The main window consists of:
Main Menu
Icon Area
Icons representing the accelerator elements are displayed in the icon
bar. Clicking on an element in the graph
area or the plot graph area will
cause the icon bar to move to the icon for that element and highlight
it.
Clicking on an icon will cause a popup window to appear with
information about that element.
Controls
Sector
The icon bar will move to the sector entered in the text box (after
<CR>). Also the arrows by the text box will scroll the icon bar
by a sector.
Middle Icon
The icon bar will move so that the icon for the element with the
number entered in the text box (after <CR>) is in the center of
the bar. That icon will be highlighted. Also the arrows by the text
box will scroll the icon bar by one element and highlight the middle
icon.
Icons
Graph Area
The orbit is displayed in the graph area. How the orbit is displayed
may be controlled via the orbit
options. Clicking Button 1 on a element (actually on the value of
s for that element) will cause the icon display to move to that icon.
Clicking Button 2 on an element will cause that element to move to the
center of the display. Holding down Button 3 will cause the display
to scroll. The scrolling speed depends on the distance of the mouse
cursor from the midpoint.
Controls
Interval
The number in the text box determines the length of the interval
displayed in the graph area. (See ISUNITS in the input switches.) The interval will not
change until a <CR> is pressed. The interval may be longer or
shorter than a sector.
Sector
The graph area will move so that the sector entered in the text box is
in the center of the graph area (after <CR>). Also the arrows
by the text box will scroll the graph area by an interval.
Vertical Limit
The number in the text box represents the vertical limits (in
meters) of the orbit plot in the graph area. The vertical axis
extends from minus this number to plus this number.
Reference Orbit
The text to the right of the Vertical Limit control identifies if the
plots are a difference orbit or not. If not, it says "True Orbit".
Otherwise is says "Difference w.r.t. n", where n is the number of the
difference orbit. See the orbit menu
to see how a difference orbit is used.
The plot window displays plots of various parameters w.r.t. s. It
behaves similarly to the main window.
There are several popup windows which are displayed from the menus or
by the program as needed.
The plot window consists of:
Plot Menu
Plot Graph Area
Plots of a number of parameters vs. s may be displayed in the plot
graph area. What is displayed and how it is displayed are controlled
by switches in the input file and by
the plot options dialog box.
The parameters that may be displayed as a function of s are:
alphaH alphaV
betaH betaV
gammaH gammaV
etaX etaX'
x y
x' y'
There is a design mode that
allows the element strengths and the drift spaces to be changed by
clicking with the mouse or by entering values in a text box. The
plots in the plot window change as the elements are changed, allowing
immediate visual feedback of the results of the changes on any of the
above parameters.
The mouse operations are the same as those for the graph area in the
main window: Clicking Button 1 on a element (actually on the value of
s for that element) will cause the icon display to move to that icon.
Clicking Button 2 on an element will cause that element to move to the
center of the display. Holding down Button 3 will cause the display
to scroll. The scrolling speed depends on the distance of the mouse
cursor from the midpoint.
Controls
Interval
The number in the text box determines the length of the interval
displayed in the graph area. (See ISUNITS in the input switches.) The interval will not
change until a <CR> is pressed. The interval may be longer or
shorter than a sector.
Sector
The graph area will move so that the sector entered in the text box is
in the center of the graph area (after <CR>). Also the arrows by
the text box will scroll the graph area by an interval.
Upper Limit
The number in the text box represents the upper limit (in meters) of
the plots in the graph area. The vertical axis extends from the lower
limit (see below) to this number.
Lower Limit
The number in the text box represents the lower limit (in meters) of
the plots in the graph area. The vertical axis extends from this
number to the upper limit (see above).
Xorbit provides a Channel Access capability which emulates that
used in the APS control system. The real (Epics) Channel Access
communicates with real devices over the Ethernet. Xorbit
Channel Access communicates with Xorbit, which simulates many
aspects of the real devices, via Unix interprocess communication,
primarily via a message queue.
Channel-access interfaces to such programs as Mathematica, Devtest,
WingZ, and Excel work in just the same way with Xorbit as they
do with the real accelerator. The only necessary change is that they
need to be linked with the Xorbit Channel Access routines
rather than the Epics Channel Access routines. The Xorbit
routines have the same names and arguments and, in fact, use the same
header file, cadef.h.
Apart from emulating the real Channel Access, these routines provide a
powerful and easily modified way to perform complex procedures, such
as orbit correction, on the lattice in Xorbit. They also make
the extensive features, such as plotting or matrix manipulation, in
programs such as Mathematica available for analyzing orbit
dynamics.
Devices are read or set via their process variable names. The
process variable names used in Xorbit are of the form:
- elementname.variable
elementname is the full name of the element in Xorbit,
e.g., S34AQ1. The possible values for variable include:
x x value
y y value
xp x' value
yp y' value
a a strength
b b strength
s s
alphah alphah
alphav alphav
betah betah
betav betav
gammah gammah
gammav gammav
psih psih
psiv psiv
bpmx x reading
bpmy y reading
nuh nuh reading
nuv nuv reading
l length
xerr x displacement
yerr y displacement
etax x dispersion
etaxp x' dispersion
To read the x displacement of S34AQ1 one would use the process
variable name S34AQ1.xerr, and to set the strength of horizontal
corrector S1AH2 to, say, 0.1 mrad, one would use the process variable
name S1AH2.a. In Mathematica, for example, this might be done
by:
- xdisp=CaGet["S34AQ1"]
- and
- newstrength=CaSet["S1AH2.a",.0001],
respectively. In a spreadsheet it might be done by selecting the cell
or cells with the appropriate name or names and indicating the cells
for the input and output values before running an appropriate macro.
See the instruction manuals for the relevant program interface for
details and the Mathematica
interface.
Mathematica
The program CaMath is supplied with Xorbit to provide an interface
that allows using the power of Mathematica with the orbit tracking
capability of Xorbit. This program contains a subset of the
Mathematica channel-access capability developed for the Advanced
Photon Source, but it is sufficient to utilize Xorbit calculations
from within Mathematica using the available Channel-Access variables.
This discussion assumes that you are familiar with Mathematica and how
to run it on your system.
Xorbit can be run with channel access either interactively or
non-interactively. Non-interactively, it just waits for
Channel-Access messages. Interactively, you have access to any of the
features of the Xorbit GUI while you are running Mathematica.
The interface between Mathematica and Xorbit is established by
connecting to CaMath via sockets. This is done using the Mathematica
Install["command"]. If the command is the CaMath program itself (with
the proper path), everything else is done for you. This is the
easiest way if Mathematica is on the same machine as Xorbit.
Otherwise, you can start CaMath independently. It will give you a
socket name, which you can then use for command when using
Install["command"] from within Mathematica. This method seems to be
more solid if there are problems. After you have established a
connection with Install[], you have two additional Mathematica
commands, CaGet[] and CaSet[], which are described below. See the
Mathematica manual for more details on the MathLink interface, if
necessary.
Directions
More precisely, the steps to run Xorbit with Mathematica are as
follows. (Optional steps are enclosed in [ ]'s, and the full pathname
for CaMath is assumed to be ~/src/camath/CaMath):
- Start Xorbit:
- interactive: Set IINTERACTIVE=1 in the input file. Set
ICAWAIT=1 or use the Channel Access / Start option in the Options
menu.
- non-interactive: Set IINTERACTIVE=0 and ICAWAIT=1 in the
input file.
- xorbit <name> & [Start Xorbit]
- Run Mathematica:
- math [Start Mathematica]
- Install["~/src/camath/CaMath"] [Start the interface from within Mathematica]
- ... [Do whatever you want to do]
- Quit [Terminate Mathematica]
- or
- ~/src/camath/CaMath [Run CaMath from outside Mathematica]
- <CR> [Get <socket> to use below]
- [^Z] [Suspend if running from a single tty]
- [bg] [Put CaMath in the background]
- [rlogin <machine>] [If you want to use another machine]
- math [Start Mathematica]
- Install["<socket>"] [Connect to the socket returned from CaMath]
- ... [Do whatever you want to do]
- Quit [Terminate Mathematica]
- [logout] [If using another machine]
- Terminate Xorbit:
- interactive: Use Quit
button.
- non-interactive: Xorbit traps SIGTERM and SIGINT in
order to terminate cleanly. There are several ways to utilize this
feature:
- kill %xorbit [Kill the Xorbit process]
- or
- fg %xorbit [Bring the process to the foreground]
- ^C [Kill it]
- or
- ps | grep xorbit [Get the process id, <pid>]
- kill <pid> [Kill it]
CaGet and CaSet
These two functions are all that are needed to access any of the
channel access variables from Xorbit. Their syntax is:
- values=CaGet[{s1, s2,...}]
- or
- values=CaGet[s1, s2, ...]
- newvalues=CaSet[{s1, s2,...},{val1,val2, ...}]
- or
- newvalues=CaGet[s1, s2, ... ,val1, val2, ...]
The quantities s1, s2, ... are Mathematica strings which are the
process variable names (See Channel
Access), and the quantities, val1, val2, ... are the numbers to
which these process variables are to be set in the case of CaSet. The
return quantities, values or newvalues, will be lists with the same
length as {s1, s2, ...}, and are the current settings. The second
form (without lists) is more convenient when using only a single
process variable.
For example the following Mathematica lines would increment two
correctors, S1AH1 and S1AH2, by 0.1 mrad.:
- names={"S1Ah1.a","S1AH2.a"}
- oldvals=CaGet[names]
- newvals=CaSet[names,oldvals+.0001]
The file xorbit.m contains a number of typical Mathematica procedures,
which should be usable with any machine to do involved procedures such
as measuring response matrices or performing orbit correction.
Lattice File
Creates a file, "lattice.xin", which can be used as the part of the
input file that defines the lattice elements. There is a choice of
saving either the Full lattice (using the full names) or the
lattice for a single Sector (using the reduced names).
Awe File
Creates a file, "xorbit.awe", which can be used as input to the Awe
program written by Mike Borland. This file contains most of the
important arrays from Xorbit. Refer to Awe for direction in
using this file. There is a choice of Createing a new file or
Appending to an old one.
Quit
Terminates Xorbit.
Options Menu
Plots
Opens the plot window.
Show Tunes
Displays the horizontal and vertical tunes and total phase advances
for the current configuration.
New Twiss
Causes new values for the Twiss parameters to be calculated. This is
not always done automatically for efficiency reasons.
Restore Lattice
Restores the lattice as it was read from the input file.
Displacements
Controls the values for the displacements of the elements in the
lattice. They can be Saved, Restored, Zeroed, or
New random values can be calculated.
Correctors
Controls the corrector strengths. They can be Saved,
Restored, or Zeroed.
Channel Access
Controls Channel Access. There
are two options: Start (or restart) Channel Access or toggle
the Echoing of Channel Access messages.
Xvgr Plots
Starts Xvgr as an independent process to display several plots,
including Orbit plots of x, x', y, or
y'; Full Twiss or single Sector Twiss plots of
Alpha, Beta, or Gamma; and plots of strengths of
Correctors, either Horizontal or Vertical. These
plots may be printed, combined, or otherwise modified in Xvgr, which
is a powerful plotting program. See the Xvgr instruction manual.
Xterm
Starts an Xterm window as an independent process. (It may be useful
to run Mathematica or other programs in an Xterm window, since the
Xterm window will remain after the other program has stopped, either
inadvertently or on purpose.)
Devtest
Starts Devtest as an independent process in its own window. Devtest
can be used to access Xorbit via Channel Access. See the instruction manual
for Devtest.
Mathematica
Starts Mathematica as an independent process in its own window.
Mathematica can be used to access Xorbit via Channel Access. See the instruction manual
for Mathematica. A number of procedures for using Mathematica with
Xorbit are defined in xorbit.m and other .m files that may be
read into Mathematica.
Orbit Options
Brings up a dialog box with orbit
options.
Closed Orbit
Calculates the closed orbit for the current configuration.
Start Orbit
Starts a new orbit from the starting values given in the input file or
modified in the orbit options
dialog box. The number of turns is also specified in the input file
or modified via the orbit options dialog box. The orbit starts with
the INJ marker element.
Continue Orbit
Continues the orbit from its current values for another set of turns
as specified in the input file or modified in the
orbit options dialog box.
Statistics
Displays the rms and maximum absolute values for all points on the
orbit, the monitors only, the corrector strengths, and the quad
displacements.
Save
Saves the current orbit associated with one of the possible save
numbers.
Display
Displays one of the saved orbits on the graph area.
Difference
Sets the graph area to display the difference of all later orbits
w.r.t the choosen one. Choosing None causes no differencing to
occur (as is the case when Xorbit starts). The number of the
orbit is shown at the right edge of the area above the graph area. If
there is no differencing, then "True Orbit" is displayed. Note that
choosing Closed differences the orbit w.r.t the current
closed orbit, which may not be what is desired.
Girder-Corrected Orbit
Applies an algorithm that corrects the orbit by moving girders. The girders are specified
in the input file. This algorithm is
of limited interest, and it is better to do this sort of thing via Channel Access using a program like
Mathematica.
Quad-Corrected Orbit
Applies an algorithm that corrects the orbit by moving quadrupoles. The positions of the
quadrupoles that minimize the closed-orbit or the closed orbit at the
monitors (depending on a switch in the input file) are calculated by a least-squares
fit.
First-Turn Orbit
Applies an algorithm, appropriate for the first turn, that corrects the orbit by adjusting
each corrector in sequence (starting from the INJ marker) to make its
associated monitor read zero. It can be choosen from the input file or the orbit options whether to do this for a single
turn or whether to also iterate on the injection angle (at INJ) to
make the orbit be closed. The correctors and the associated monitors
are specified in the input file. It is often the case that the
uncorrected orbit hits the wall. This is the most convenient (and
realistic) way to get an initial closed orbit.
The Clear Menu appears both on the Main Menu Bar and on the Plot Menu Bar.
Clear
Clears all orbits in the graph area.
Redraw
Clears all orbits in the graph area and redraws the current orbit.
Update
Calculates and plots the orbit for the current parameters.
AutoClear, No Auto Clear
Toggles between clearing the graph area after each new orbit is
calculated and leaving the old orbits showing.
Xorbit uses Xmosaic
from NCSA to
display its help. (Look at their home pages under the Documents
pull-down menu in Xmosaic if the above links do not work.) There is
also a simple help file that can be displayed by the Quick
Notes item in the event HyperHelp is not working.
Contents
Displays the contents page for Xorbit help. You can jump to
other topics by clicking on underlined text, or you can the other
features of Xmosaic.
Overview
Displays the overview page. (Appears on the main window Help.)
Plot Window
Displays the Plot Window page. (Appears on the plot window
Help.)
Using HyperHelp
Displays help on using HyperHelp. The location of the hoh.hlp file
may be specified by the environment variable HOHPATH if it is not in
the standard place.
Quick Notes
Displays a short overview of Xorbit in a dialog box. This feature
does not require HyperHelp or Xmosaic.
Version
Displays the Xorbit version. This feature does not require
HyperHelp.
Plot Options
Brings up a dialog box with plot
options.
Design Mode
Brings up a dialog box that implements the design mode. In this mode the element
strengths and the drift spaces can be changed by clicking with the
mouse or by entering values in a text box. The plots in the plot
window change as the elements are changed, allowing immediate visual
feedback of the results of the changes on any of the above parameters.
Remove
Removes the plot window.
Quit
Terminates Xorbit.
Orbit Options Dialog Box
The controls in this dialog box are used to customize how the orbit is
displayed in the graph area and to set other parameters that are
related to the orbit.
Top Controls
Remove
Removes this dialog box.
Initial Twiss
For beamlines brings up a dialog box that allows changing the initial
twiss parameters. (See Initial Twiss
Parameters Dialog Box.)
Help
Provides help on this dialog box.
Plot:
These controls determined how the orbit is displayed.
x
Toggle display of the x coordinate of the orbit.
y
Toggle display of the y coordinate of the orbit.
x-BPM
Toggle display of markers at x positions of the orbit where there are
monitors.
y-BPM
Toggle display of markers at the y positions of the orbit where there
are monitors.
x-err
Toggle display of markers at the x positions of non-zero element
displacements.
y-err
Toggle display of markers at the y positions of non-zero element
displacements.
Symbols
Toggle display of symbols representing the magnet elements on the s
axis. Bends are one unit high, and edges are a half unit higher.
Quads are two units high and are above or below the axis depending on
whether they are focussing or defocussing. Multipoles of order n are
n units high and are above or below the axis depending on the sign of
the larger of a or b. The injection point is three units high.
Monitors are small, square boxes.
BPM-only
Toggle display of the orbit at all points or only at monitor points.
Showing the orbit with BPM Only and x-BPM and/or
y-BPM represents what is known in a real device.
BPM Only:
These controls determine options for when BPM Only above is
selected.
True Values
Shows the actual coordinates.
Values as Read
Shows the coordinates as actually read by the monitors. The offsets
(errors or displacements) are subtracted from the actual values.
Start Orbit From:
These controls determine characteristics of the orbit that is started
or continued via the Orbit Menu.
Specified
Use the x0, x0', y0, and y0' values specified below as initial values
at the injection point when starting the orbit.
FTO
Use the x0, x0', y0, and y0' values from the last-calculated
first-turn orbit as initial values at the injection point when
starting the orbit.
CLO
Use the x0, x0', y0, and y0' values from the last-calculated closed
orbit as initial values at the injection point when starting the
orbit.
x0:, x0':, y0:, and y0':
These text boxes set the initial values at the injection point which
are used when starting the orbit if Specified above is
selected. See Orbit Menu for how to
start or continue the orbit.
Orbit Turns:
This text box sets the number of turns to take when the orbit is
started or continued. See Orbit Menu
for how to start or continue the orbit.
Xvgr Plot:
These controls determine if Xvgr plot files are created. These files
can be read into Xvgr, then viewed, printed, and modified. Xvgr plots
can be also displayed from Xorbit via the Options Menu.
ORB
Make Xvgr plot files when the orbit is calculated. These files have
names starting with the prefix of the input file name and ending with
the extensions: .porbx, .porby, .porbxp, and .porbyp.
FTO
Make Xvgr plot files when the first-turn orbit is calculated. These
files have names starting with the prefix of the input file name and
ending with the extensions: .pftox, .pftoy, .pftoxp, and .pftop.
CLO
Make Xvgr plot files when the closed orbit is calculated. These files
have names starting with the prefix of the input file name and ending
with the extensions: .pclox, .pcloy, .pcloxp, and .pcloyp.
First Turn:
These controls determine which of two ways the first-turn orbit is
calculated. See First Turn.
Correct Only
Correct the orbit for one turn only.
Correct and Close
Correct the orbit for one turn and iterate on the injection angle
until the orbit is closed.
Top Controls
Remove
Removes this dialog box.
Redraw
Clears all orbits in the plot graph area and redraws the current
orbit.
Update
Calculates and plots the orbit for the current parameters.
Help
Provides help on this dialog box.
Options:
Immediate Twiss
Toggles whether the Twiss parameters are calculated immediately after
a change in the element parameters or not. If not, they may be
calculated via the Options Menu
when desired. For visual feedback in the design mode, it is usually
better to set this option on.
Symbols
Toggle display of symbols representing the magnet elements on the s
axis. Bends are one unit high, and edges are a half unit higher.
Quads are two units high and are above or below the axis depending on
whether they are focussing or defocussing. Multipoles of order n are
n units high and are above or below the axis depending on the sign of
the larger of a or b. The injection point is three units high.
Monitors are small, square boxes.
Table Controls
For each parameter in the table, these controls determine:
- Column 1: Whether this parameter is plotted in the plot graph
area or not. There are also input switches, IPLOTxxx, that control
whether a variable is plotted or not.
- Column 2: The scale factor by which the values for this parameter
is multiplied before plotting. This is one of two ways to control the
relative sizes of the curves in the plot graph area. The other is the
upper and lower limits control above the plot graph area. There are also input
switches, SCALExxx, that specify the scale for a variable.
- Column 3: The color of the curve for this parameter. Any name
which can be used as a color resource name may be used. These include
colors in the color database (usually /usr/lib/X11/rgb.txt) and names
in the forms #RGB, #RRGGBB, #RRRGGGBBB, and #RRRRGGGGBBBB, where R, G,
and B are single hexadecimal digits representing the amounts of red,
green, and blue. (For a 256-color system two digits for each color
are appropriate and Red is #FF000, for example.)
Design Mode Dialog Box
This dialog box allows the easy changing of elements with immediate
feedback in the plot graph area.
Typically this mode would be used for designing a lattice by changing
element strengths and positions while watching their effect on the
beta functions and dispersion.
The current element is choosen by clicking on its s value in either
the graph area or the plot graph area or by clicking its icon in
the icon bar.
Top Controls
Remove
Removes this dialog box.
Redraw
Clears all orbits in the plot graph area and redraws the current
orbit.
Update
Calculates and plots the orbit for the current parameters.
Restore Lattice
Restores the lattice as it was read from the input file.
Help
Provides help on this dialog box.
Options:
All Sectors
Specifies whether the changes apply to the same element in all sectors
or just to this particular element.
Attach To:
Specifies which strength is associated with the value that is
changing. See Element Input.
A
The value that changes is the A strength.
B
The value that changes is the B strength.
Position Change:
Specifies the increment for position changes in meters. The
modifications are not implemented until <CR> is pressed.
Value Change:
Specifies the increment for strength changes in the units in which the
strengths are specified. The modifications are not implemented until
<CR> is pressed.
Current Value:
Displays the current strength of the selected element. The strength
can be changed via the text box. The modifications are not
implemented until <CR> is pressed.
Current Element:
Displays the name and index in the lattice of the current element.
This text box is for display only and cannot be edited.
Arrow Keys
The left and right arrows move the element sideways. It cannot cross
the adjacent element, however. The up and down arrows increment the
strength.
This dialog box displays information about an individual element and
allows its strengths and displacements to be changed (if that is
appropriate).
The information is current at the time the dialog box is displayed.
Except for values that are changed via the text boxes, this
information is not updated as the orbit changes. One can keep track
of what is happening at an element by displaying new boxes as changes
are made to the orbit.
The information includes the type of the element, its name and index
in the lattice, the current x, x', y, and y' coordinates of the orbit;
the s coordinate of the element (in the current units); the horizontal
and vertical Twiss parameters, alphaH, betaH, gammaH, alphaV, betaV,
and gammaV; the horizontal and vertical phases, phiH and phiV
(relative to the injection point in units of pi); and the horizontal
dispersion, etaX, and its derivative, etaX'. Both X and H refer to
horizontal, and both Y and V refer to vertical.
There is a plot of the phase ellipses, red for horizontal and blue for
vertical.
When appropriate there are text boxes that can be used to change the A
and B strengths and the X and Y displacements, X Error and Y Error.
(See Element Input.) The
modifications are not implemented until is pressed.
There is a text box at the bottom for writing notes. (Nothing is done
with what is written.) This facilitates keeping track of changes in
the element parameters as the orbit changes.
Top Controls
Remove
Removes this dialog box.
Remove All
Removes all the element dialog boxes that are currently displayed.
Help
Provides help on this dialog box.
This dialog box allows initial values, alphaH0, betaH0, alphaV0, and
betaV0 for the Twiss parameters and etaX0 and etaX0' for the
dispersion, to be set when there is a beamline. These are the values
at the injection point. The modifications are not implemented until
<CR> is pressed.
Top Controls
Remove
Removes this dialog box.
Help
Provides help on this dialog box.
The input file consists of:
- One Title line (Any text)
- Input NAMELIST (See Input
Switches, End with " $")
- Two alignment guide lines (For entering the elements)
- List of elements and their
parameters (End with " $")
- Zero or more Option Blocks (Start with "*<option>",
End with " $")
- Ending line ("*End")
Sample Input File
An example of an input file is aps.in.
Input Switches
There are many switches, which control options in Xorbit.
These are read in the NAMELIST part of the input file. Switches which
are not explicitly entered are set to the Xorbit defaults.
List of Switches
An element in Xorbit is defined by the quantities: name,
type, a, b, slen, xbar,
ybar, and ysig. For a multipole there is an additional
quantity, npole, which is the multipole order. In most cases
a is the normal strength of the element and b is the
skew strength, but these quantities are different for a bend and for
bend edges. slen is the length of the element, xbar is
the mean displacement in the x direction, and xsig is the
standard deviation of the displacement. Similarly, for ybar
and ysig. If xsig or ysig is non-zero, the
corresponding displacement of that element is determined randomly from
a Gaussian distribution. The input quantities are read in the
following order with the following format:
- name,type,npole,a,b,slen,xbar,xsig,ybar,ysig
- FORMAT(A,1X,A1,A1,1X,7F10.0)
The length of the names, namesize, is determined by the input switch NAMESIZE.
If a name is repeated, then the rest of its parameters are overwritten
by the parameters for the first occurance of that name. Consequently
they do not need to be typed. Ignored, zero, or blank parameters also
do not need to be typed.
The lines containing the element definitions are preceeded by two
lines which are ignored (and which can be used for alignment). The
element definitions must be followed by a line containing " $" to
terminate the element input. See the sample input file.
The possible elements and their inputs in detail are:
- Injection Point
- type: i
- npole: ignored and set to blank
- a: ignored and set to 0
- b: ignored and set to 0
- slen: ignored and set to 0
(There must be one injection point. It need not be at the
start of the elements. Initial values for the orbits refer to this
location in the lattice. For the first-turn algorithm, this point must be just
before a monitor.)
- Monitor or Marker
- type: m
- npole: ignored and set to blank
- a: ignored and set to 0
- b: ignored and set to 0
- slen: ignored and set to 0
- Drift Length or Straight
- type: s
- npole: ignored and set to blank
- a: ignored and set to 0
- b: ignored and set to 0
- slen: l
(l is the length of the drift space.)
- Bend
- type: b
- npole: ignored and set to blank
- a: thetab / pi
- b: rho (Use 0 for no bend)
- slen: ignored and set to (rho thetab)
(thetab is the bend angle and rho is the radius.)
- Edge
- type: e
- npole: ignored and set to blank
- a: thetae / pi
- b: rho (Use 0 for no bend)
- slen: ignored and set to 0
(thetae is angle between the xaxis and the magnet face. thetae = 0
for a sector magnet, and thetae = thetab for a parallel-face magnet.
thetae is the same as E1 or E2 for an SBEND in Mad. rho is the
radius.)
- Nonlinear or Multipole
- type: n
- npole: 1-9 (Dipole is 1)
- a: An
- b: Bn
- slen: ignored and set to 0
(An and Bn are the coefficients in the expansion of the field:
- By + i Bx = (B rho / l) Sum [ (An + i Bn) (x + i y)^(n-1) ]
Correctors are specified as n1 multipoles. Note that for horizontal
correctors An is the corrector strength in radians and that for
vertical correctors Bn is (minus) the corrector strength in radians.
For normal sextupoles (n3 multipoles), An is (B'' l) / (2 B0 rho0).
(There are no finite-length, nonlinear elements in Xorbit.)
- Quadrupole or Combined Function
- type: q
- npole: ignored and set to blank
- a: K
- b: rho (Use 0 for a pure quadrupole with no bend)
- slen: l
(K is the quadrupole strength, B' / (B0 rho0); rho is the radius for a
combined-function element; and l is the length.)
- Thin
- type: t
- npole: ignored and set to blank
- a: K l
- b: ignored and set to 0
- slen: ignored and set to 0
(K is the quadrupole strength and l is the length)
First-Turn Algorithm
See the Xorbit Manual. An example is in the sample input file.
See the Xorbit Manual.
See the Xorbit Manual.
